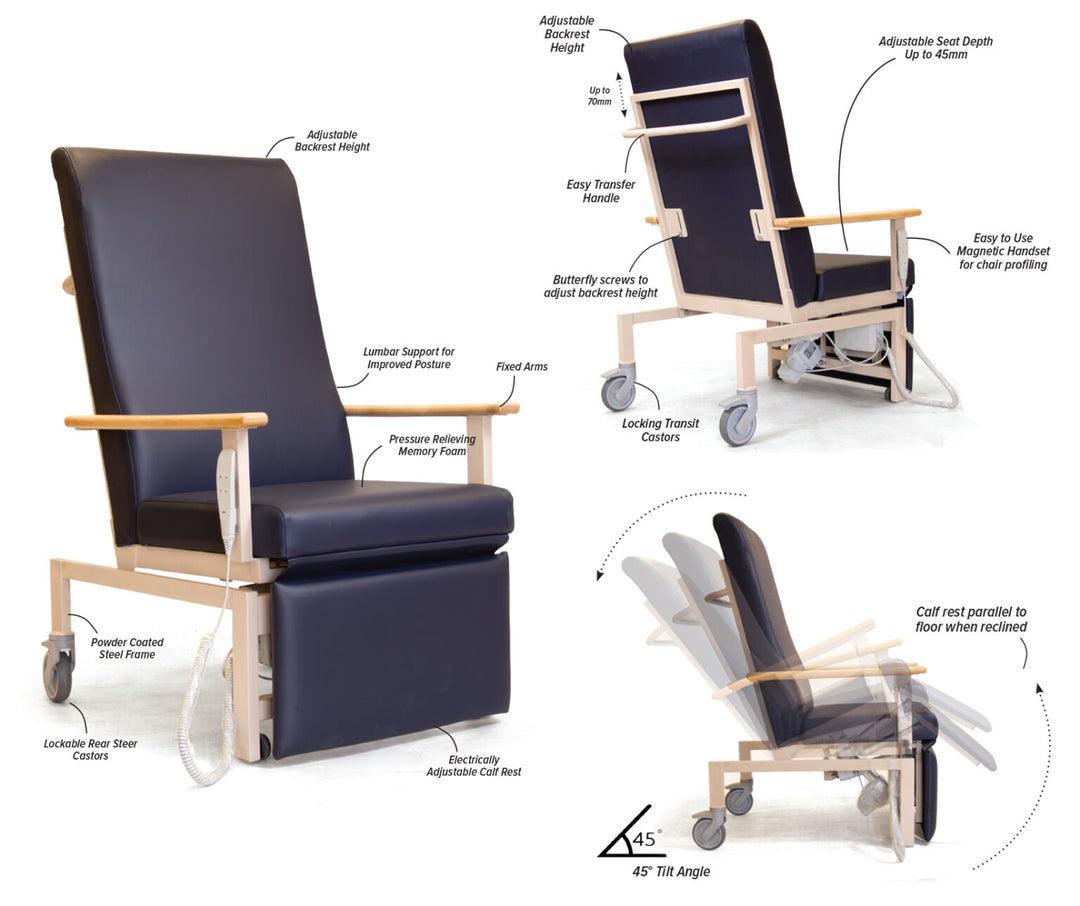

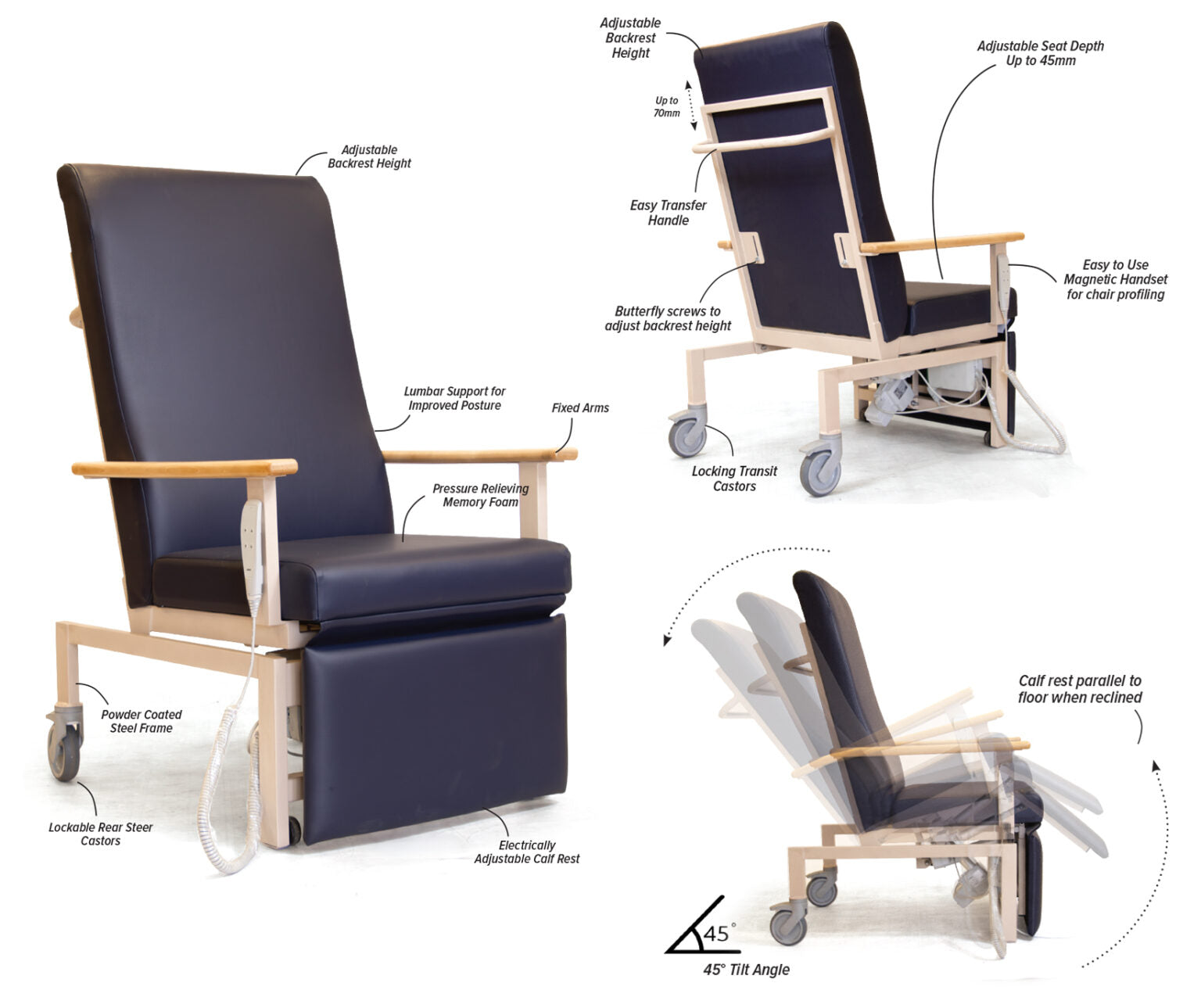

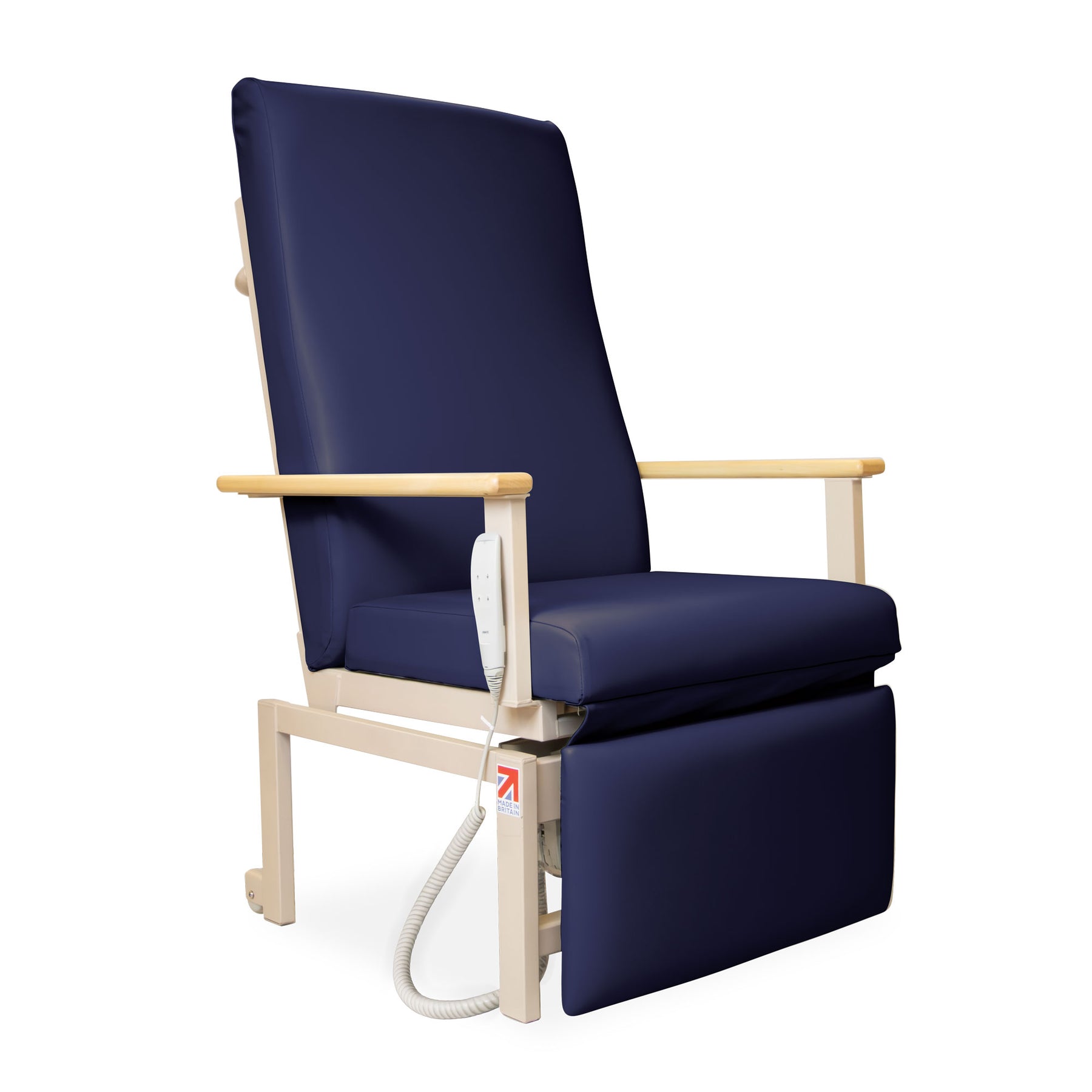

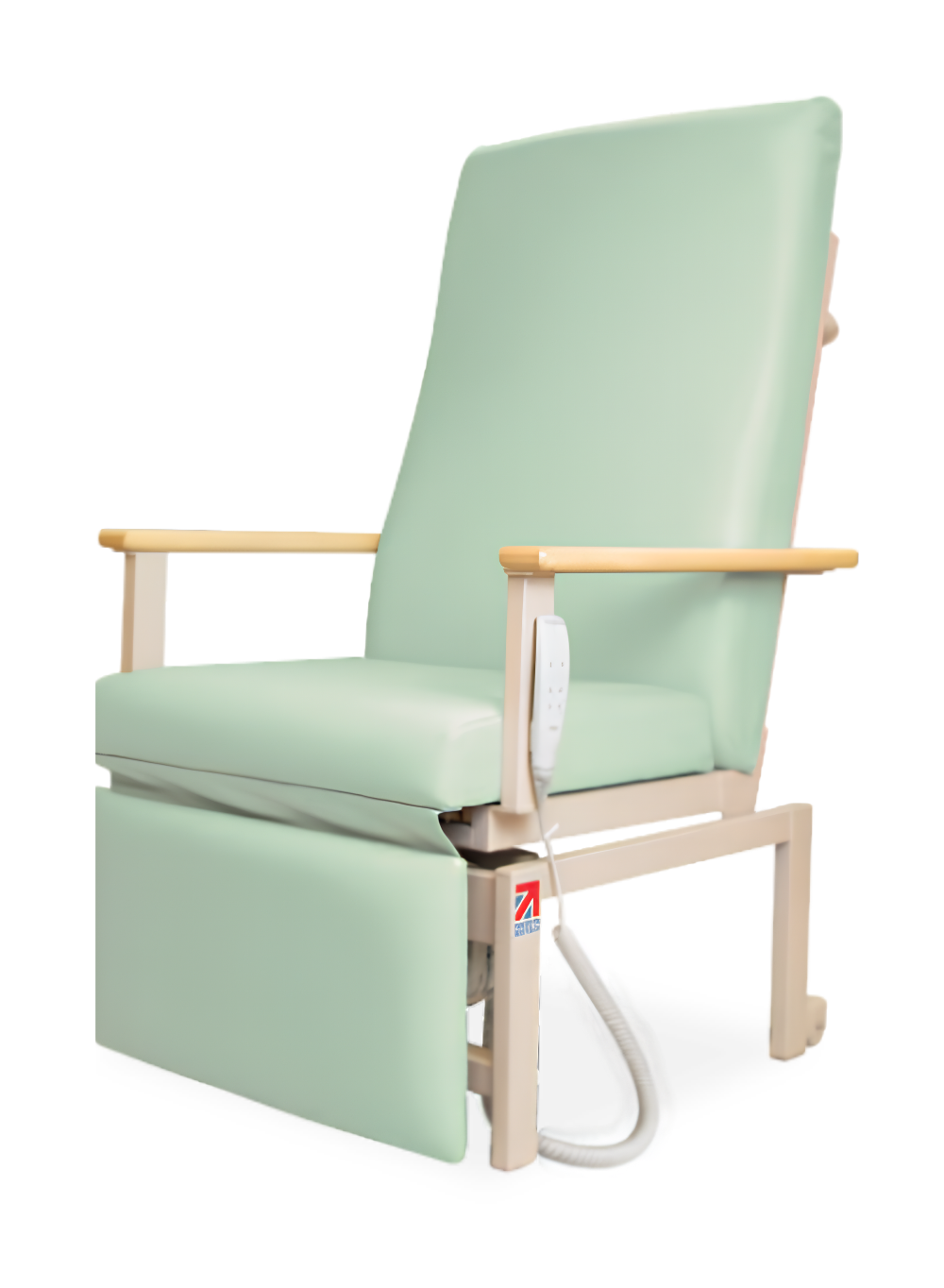

The Tilt-in-Space® Chair Fixed Arm

Following requests from several NHS trusts for a no-nonsense tilt-in-space chair that eliminates the complexities and cleaning issues of currently available costly specialist products, the design for the Tilt-in-Space Chair was conceived. While this is not a specialist chair, it was still essential to incorporate key functions such as tilt to 45 degrees and pressure care, with full control of all features by the user.

• Floor to Seat Pad Height: 480mm
• Seat to top of Backrest: 780-850mm
• Overall Depth (Reclined, Calf Rest Raised): 1330-1450mm
• Overall Depth (Upright, Calf Rest Down): 900mm
• Overall Height: 1230-1290mm
• Overall Width: 720mm
• Width (between arms): 590mm
• Seat Pad Depth: 490-535mm
• Seat Pad Width: 590mm
• Leg Rest Width: 600mm)
• Leg Rest Depth: 330mm)
• Backrest Width: 590mm

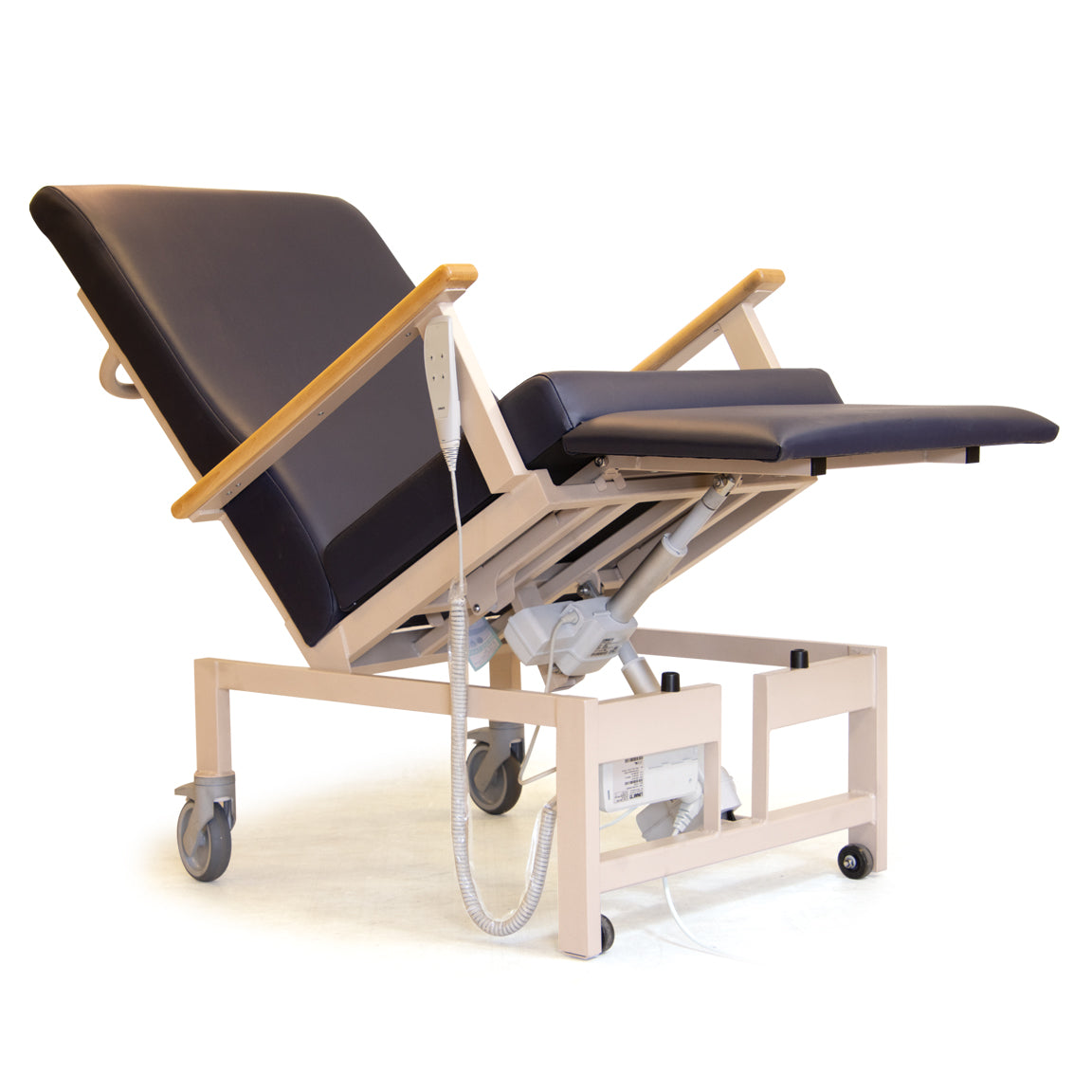

• Reclining Angle: 45°
• Calf Rest Angle to Seat: 45°
• (Parallel to floor when fully reclined)
• Product Weight: 48kg
• Max User Weight: 190kg (30st)
